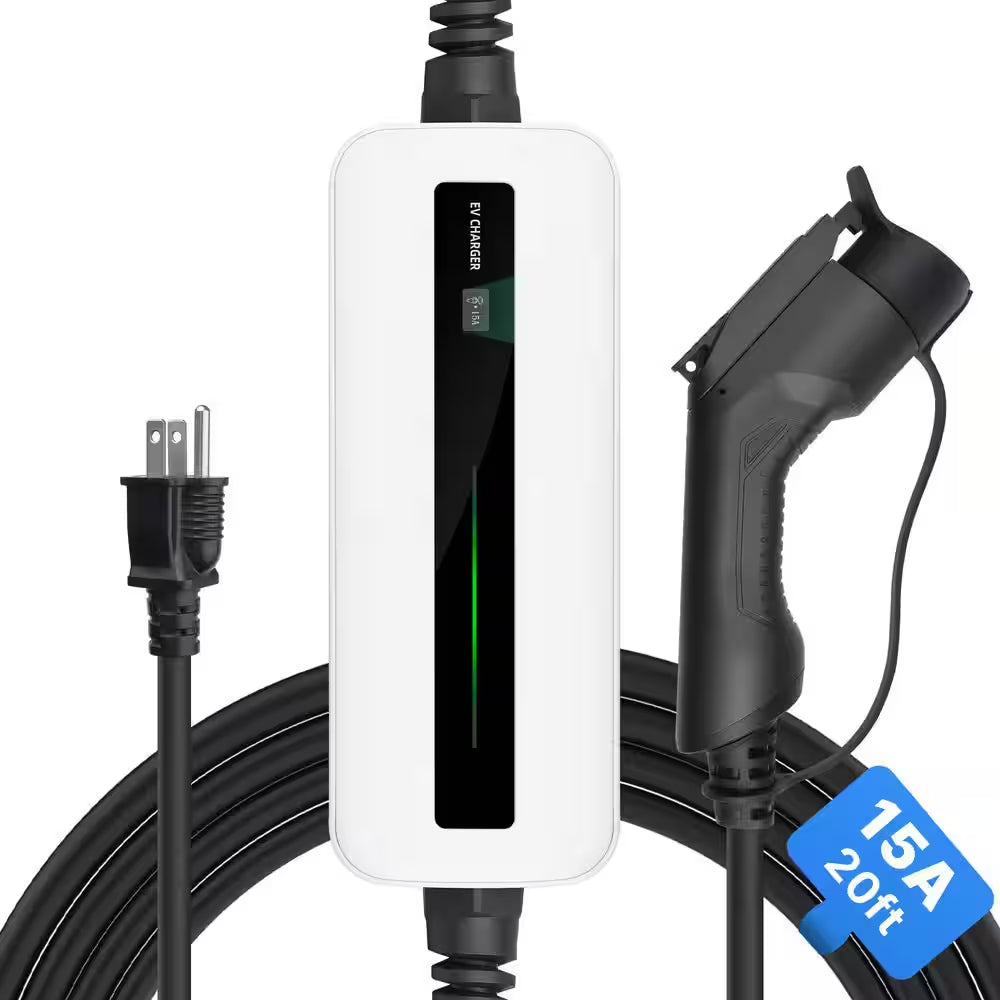

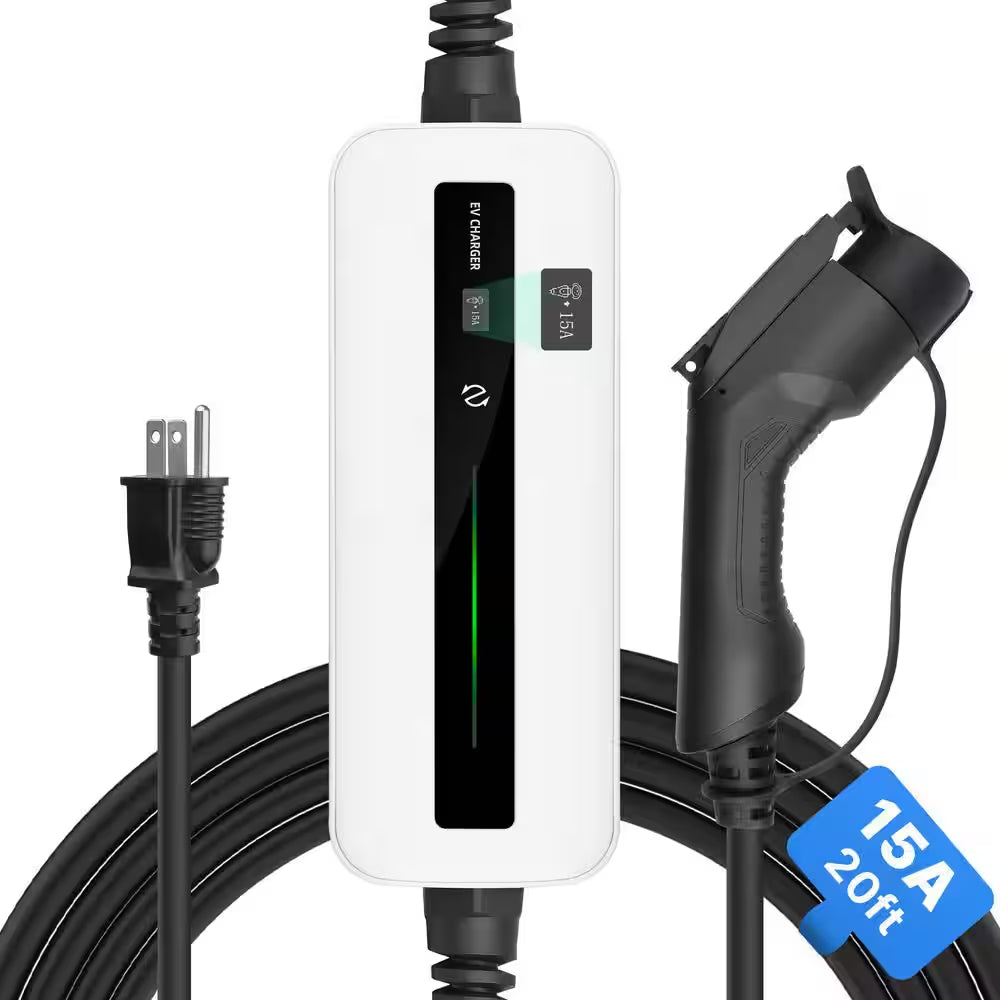

20-Foot 120V Portable Level 1 EV Charger with NEMA 5-15 Plug and SAE J1772 Connector

Charge a compatible electric vehicle or plug-in hybrid from a standard 120V household receptacle with this portable Level 1 EV charger. Equipped with a NEMA 5-15 wall plug, SAE J1772 vehicle connector, and 20-foot cable, it provides a convenient charging option for home use, travel, and emergency backup.

The lightweight 5.04-pound design makes the charger easy to store in a vehicle or garage. Integrated indicator lights display charging and operating status, while the control system monitors supported electrical conditions during use.

An IP65-rated enclosure provides protection against dust and directed water exposure. The charger is suitable for supported indoor and outdoor applications when its plug, receptacle, and electrical connections are kept protected and used according to the manufacturer’s instructions.

Key Features

• 120V Level 1 EV charging
• NEMA 5-15 household plug
• SAE J1772 vehicle connector
• 20-foot charging cable
• Portable 5.04-pound design
• LED charging-status indicators

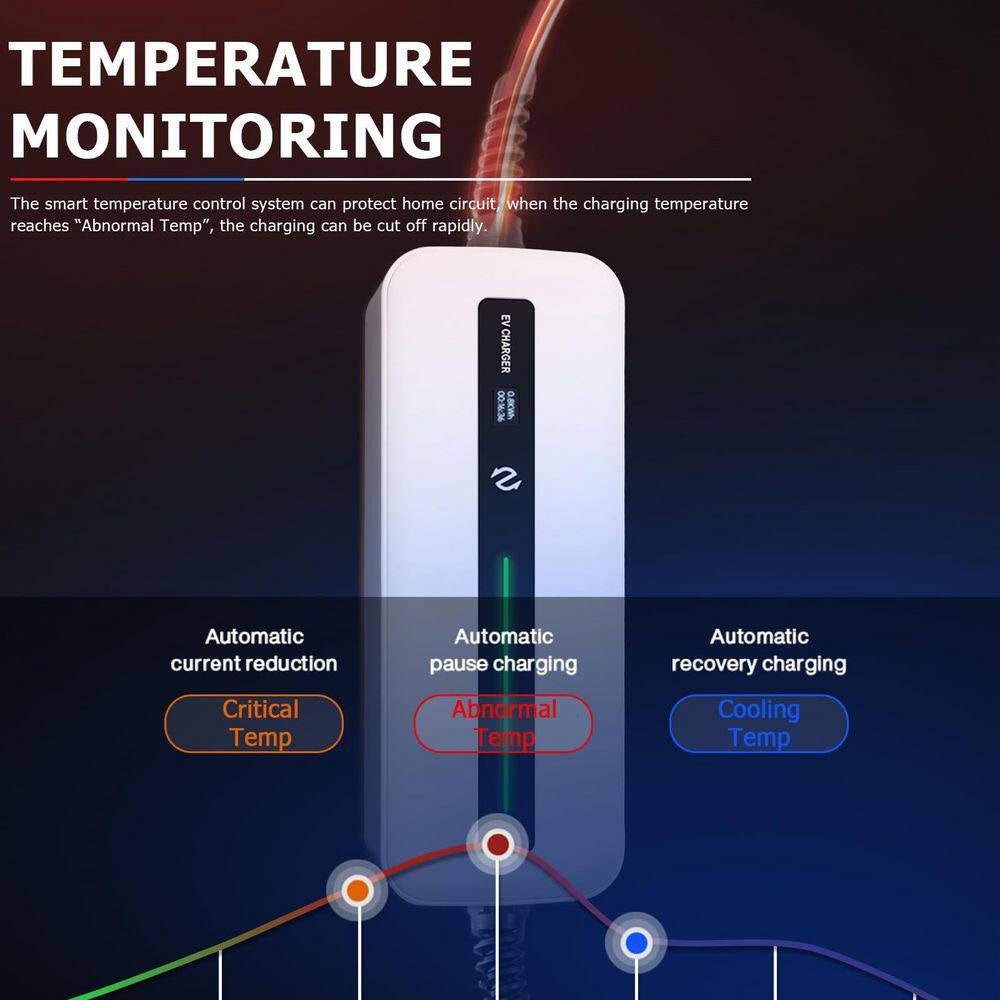

• Integrated charging-monitoring system
• IP65-rated enclosure
• Indoor and supported outdoor use
• ETL certified
• No Wi-Fi or mobile app required
• Suitable for compatible EVs and plug-in hybrid vehicles
• One-month manufacturer warranty

Convenient Level 1 Charging

Level 1 charging provides a practical option for overnight use, lower-mileage driving, plug-in hybrids, and locations without a dedicated 240V charging circuit.

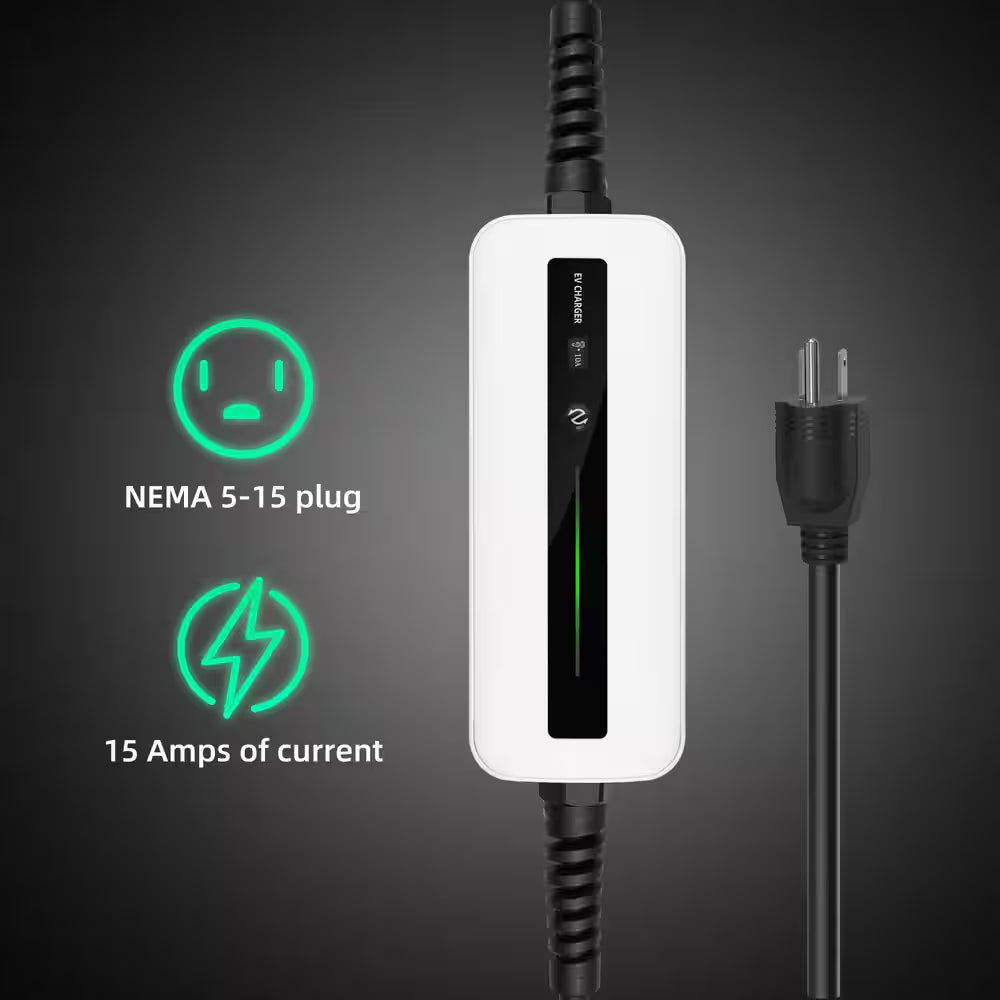

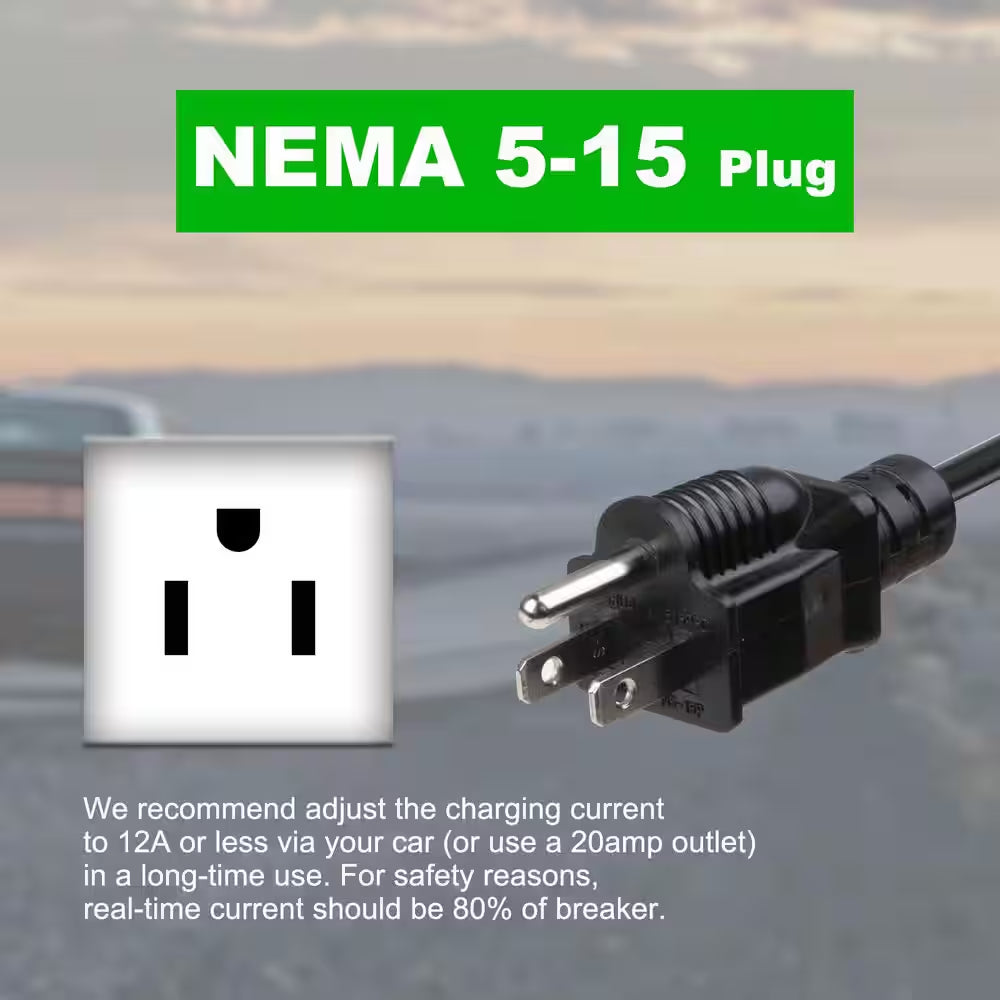

A NEMA 5-15 receptacle is rated for a 15A circuit. Because EV charging is treated as a continuous electrical load, charging current should not exceed 12A on a properly installed 15A circuit. At 120V and 12A, maximum calculated charging power is approximately 1.44kW.

Actual charging speed and driving range added depend on the vehicle, onboard charger, battery size, state of charge, temperature, efficiency, and available circuit capacity.

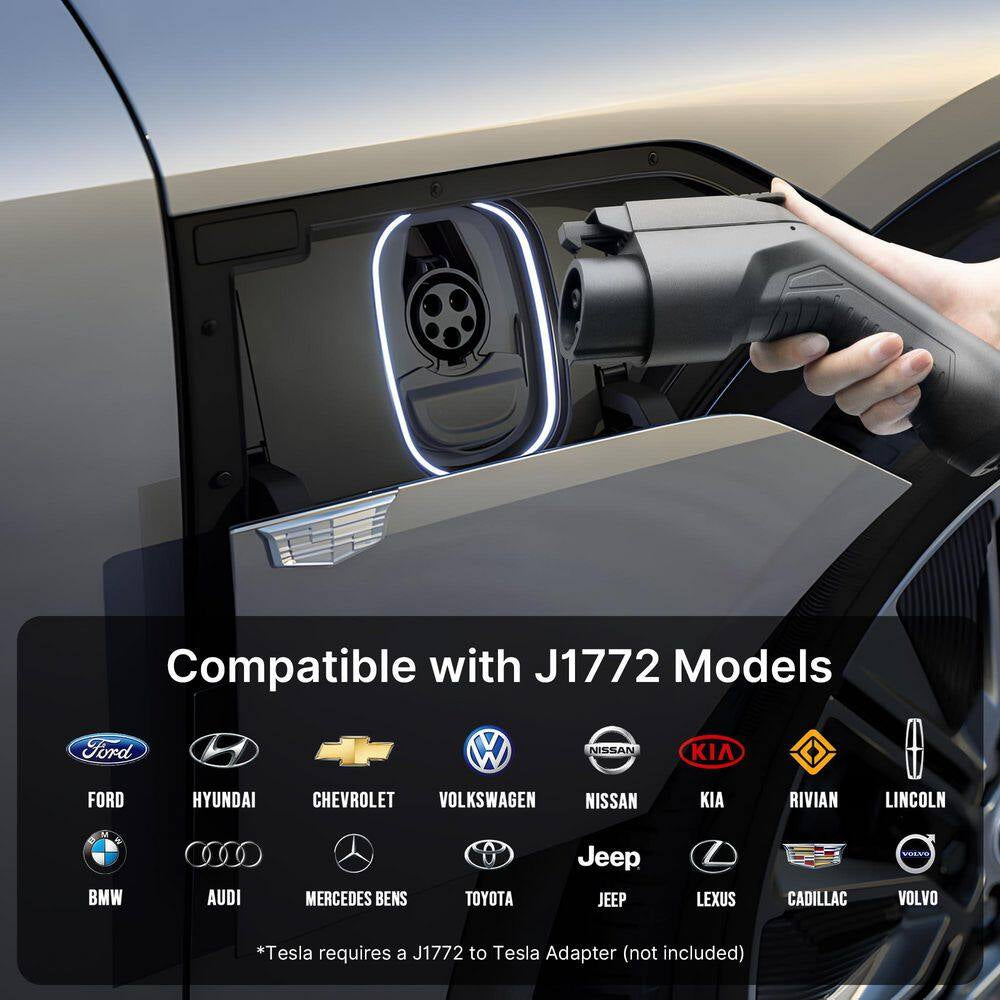

SAE J1772 Vehicle Compatibility

The SAE J1772 connector works with compatible electric vehicles and plug-in hybrids equipped with a J1772 charging inlet.

Vehicles with a NACS inlet require an approved J1772-to-NACS adapter. Confirm the vehicle, charger, and adapter manufacturers permit the intended configuration before use.

20-Foot Portable Design

The 20-foot cable provides convenient reach between the electrical outlet and parked vehicle. At approximately 5.04 pounds, the charger can be stored in a trunk, cargo compartment, garage, or travel kit when not in use.

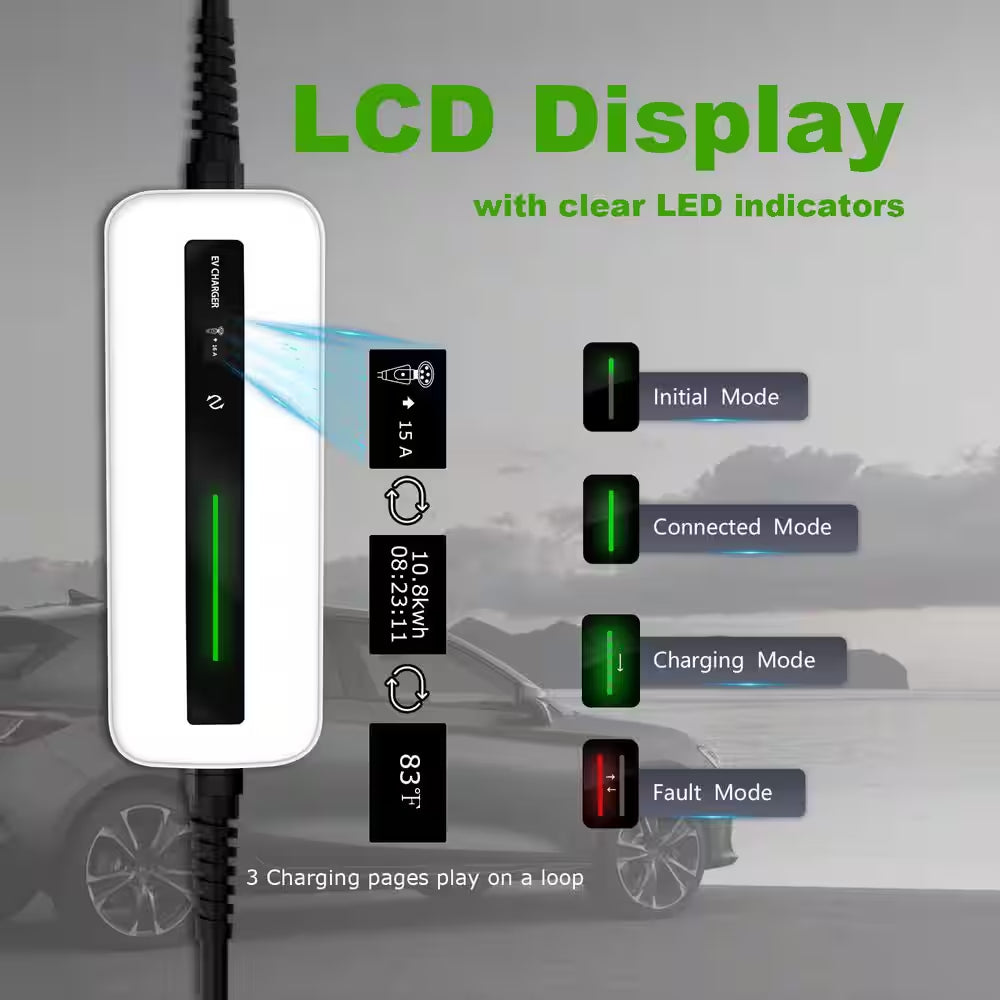

Charging-Status Indicators

Integrated indicator lights provide convenient visibility into supported operating conditions, which may include:

• Power availability
• Charging activity
• Completed or standby status
• Supported fault notifications

Refer to the product manual for the exact meaning of each indicator pattern.

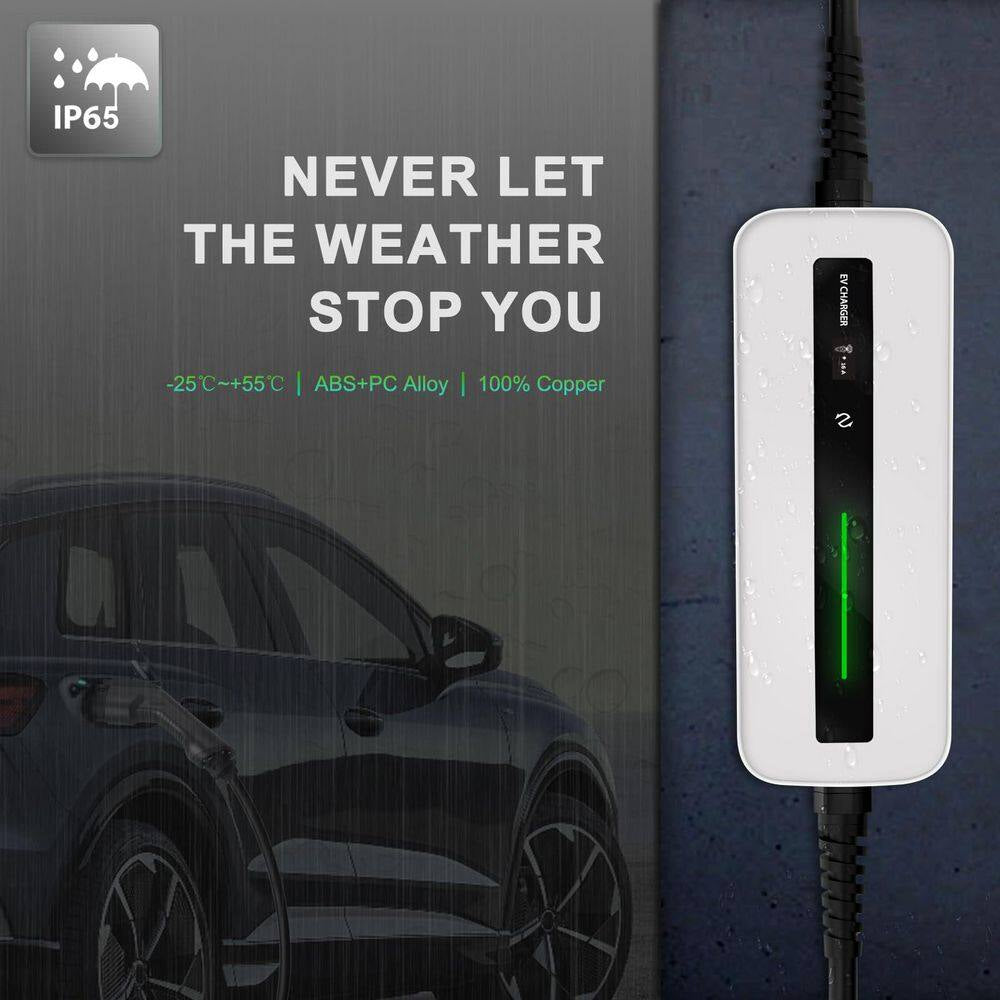

IP65-Rated Enclosure

The listed IP65 rating indicates protection against dust and low-pressure directed water exposure for the rated enclosure. It does not mean the charger can be submerged, and it may not apply to the wall plug, receptacle, connector interface, or every electrical connection.

Keep connections elevated, dry, and protected from standing water, flooding, snow accumulation, and direct precipitation.

Specifications

• Charger type: Portable Level 1 EVSE
• Input voltage: 120V
• Wall plug: NEMA 5-15P
• Vehicle connector: SAE J1772
• Recommended maximum continuous current on a 15A circuit: 12A
• Calculated output at 120V/12A: Approximately 1.44kW
• Cable length: 20 ft
• Enclosure rating: IP65
• Intended application: Residential
• Installation style: Portable/free-standing
• Listed use: Indoor and supported outdoor
• Product dimensions: 15.75 × 14.96 × 3.15 in
• Product weight: 5.04 lb
• Listed certification: ETL
• Manufacturer warranty: 1 month
• Listed return period: 90 days, subject to the seller’s current return policy

Whether you need a portable EV charger for overnight use, a travel charging cable, or a backup Level 1 charging solution, this 120V J1772 EVSE provides straightforward charging from a compatible household outlet.

Electrical Safety Notice: The source specification lists 15A, but a NEMA 5-15 circuit should not supply a 15A continuous EV-charging load. Confirm that the unit’s actual maximum charging current is 12A or less before offering it for sale. Use a properly grounded, undamaged, preferably dedicated receptacle that has been inspected for EV charging. Do not use extension cords, power strips, multi-outlet adapters, or damaged receptacles. Outdoor charging requires appropriate ground-fault protection and weather protection for every connection.
